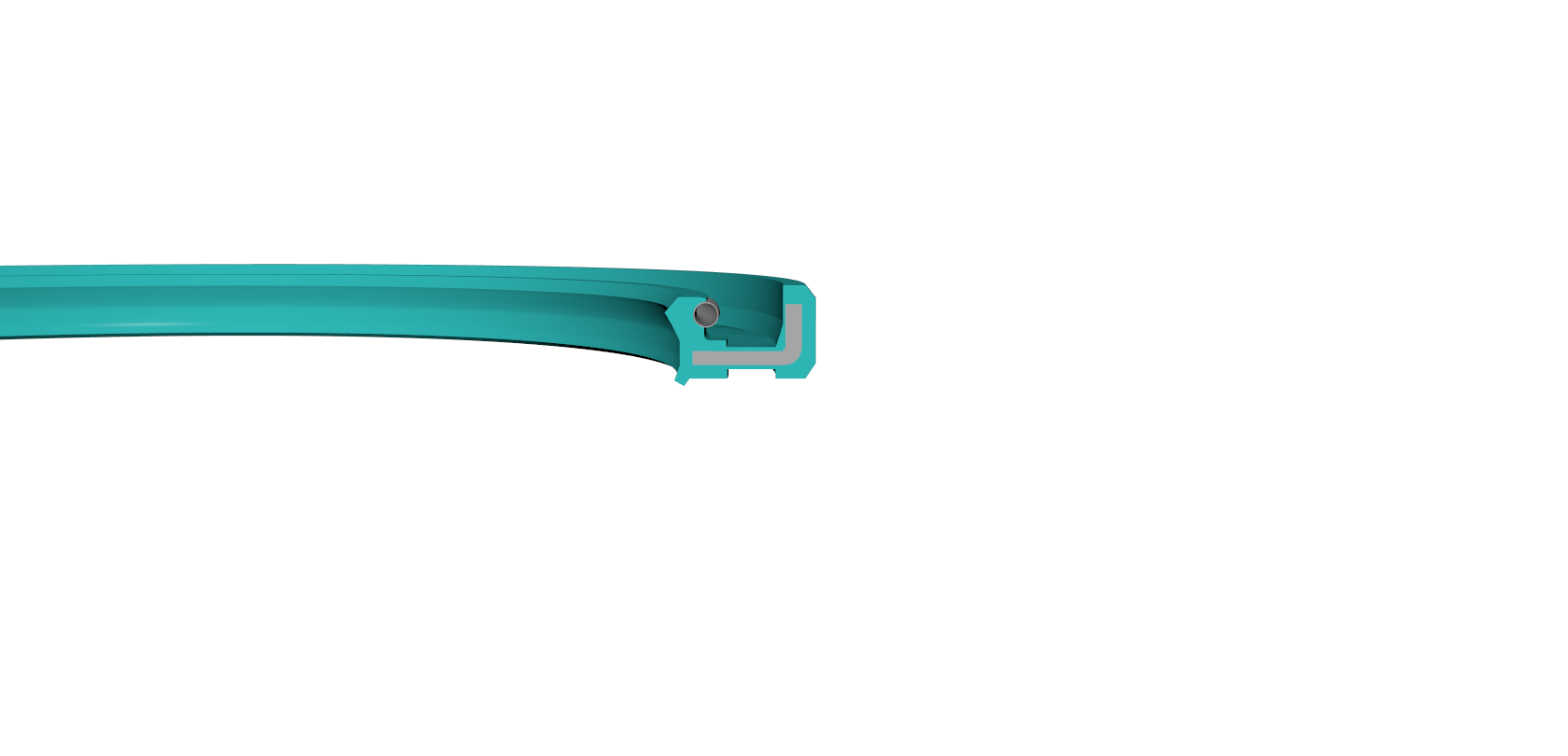

High pressure GBP
sku: anelli-di-tenuta-alta-pressione-gbp
Dettagli
Like the GB profile, with dust lip. PRESSURE: Up to 10 BAR (1 MPa)
Like the GB profile, with dust lip.
PRESSURE: Up to 10 BAR (1 MPa)
APPLICATION: Radial sealing Ø
OUTER SURFACE: Rubber-coated
CONSTRUCTION:
- Metal case coated in rubber
- Specially designed sealing lip
- Toroidal spring
- Dust lip
Technical features
| Metal Insert | Spring | Compound | Min./Max. Temperature (°C) | Speed (m/s) | Pressure (MPa) |
|---|---|---|---|---|---|
| NBR | -20 / +100 | 10 | 0,3 - 1 | ||
| FKM (Viton) | -15 / +200 | 10 | 0,3 - 1 |
